Ultra-thin Portable Static Wireless Vehicle Weighing Plate: A New Choice for Lightweight & Accurate Weighing
一、Core Positioning of the Equipment
This ultra-thin portable static wireless vehicle weighing device is a high-precision measuring tool specially designed for mobile weighing scenarios. Featuring an ultra-slim body and wireless transmission as its core advantages, it solves the pain points of traditional weighing equipment such as bulky size, complicated wiring and poor mobility. It is applicable to vehicle weight measurement in various scenarios including road law enforcement, logistics acceptance, maintenance and inspection.
二、 Application Scenarios
1.Traffic Law Enforcement: Conduct mobile overload inspection on freight vehicles without the need for fixed inspection stations.
2.Logistics & Warehousing: Quickly verify vehicle load during goods receiving and delivery to improve acceptance efficiency.
3.Auto Maintenance: Measure vehicle axle weight and total weight to assist chassis maintenance and parameter calibration.
4.Engineering Construction: Check the weight of engineering vehicles on construction sites to ensure operational safety.
Product dimensions diagram
＊ Single board weighing range: 500kg - 30T (Choose as needed)）
＊Tare value: 1kg/2kg/5kg/10kg adjustable
＊ Outer dimensions of the single board: 400*400*15MM (customizable size available)
＊ Single board weighing dimensions: 350*300*15MM (customizable size available)）
＊ Total static comprehensive error: ± 0.1% to ± 0.5%
＊ Operating temperature: -20 - 75 °C Relative humidity: < 90%RH
＊ Various display and instrument panels can be equipped as per requirements.
＊ The high-capacity battery can sustain continuous operation for 20 hours and it can automatically shut down.

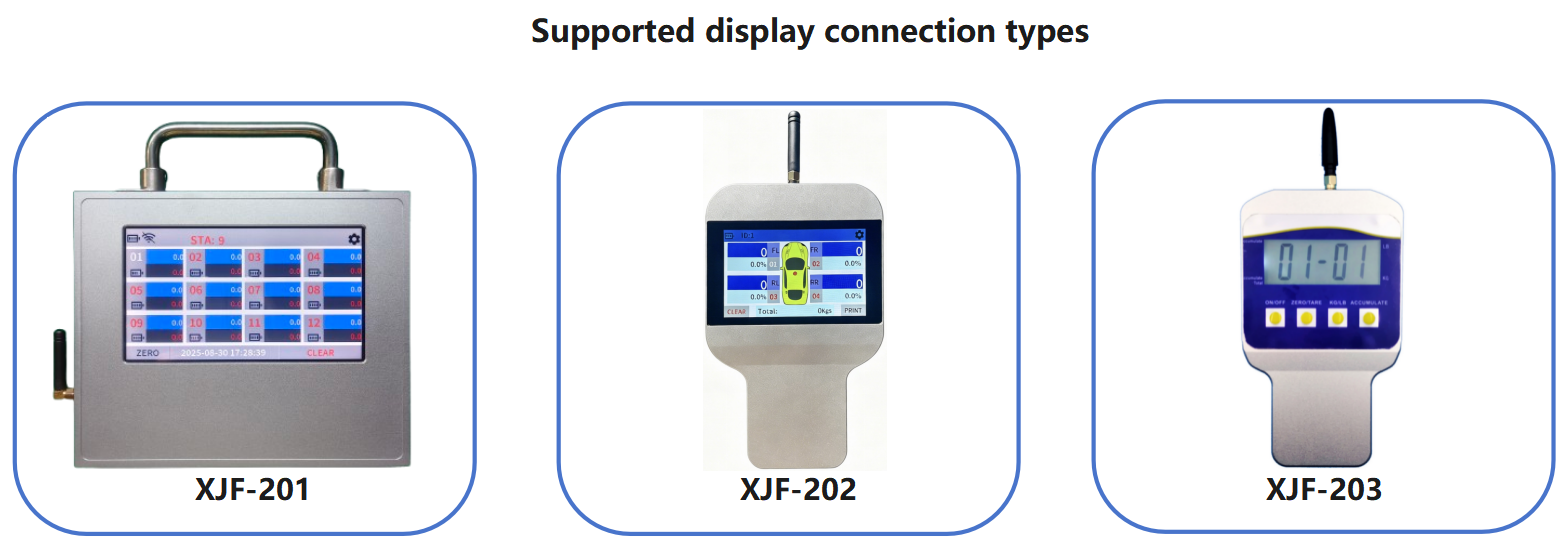

＊ XJF-201: It can simultaneously connect 12 XJF-101 wireless weighing plates for static weighing, and display 12 sets of peak weights/real-time weights as well as the total weight of the entire set of 12 plates (it can be developed into a 32-set display instrument)
＊ XJF-202: It can connect up to 6 XJF-101 wireless weighing plates simultaneously for static weighing.
＊ XJF-203: Can connect up to 1 XJF-101 wireless weighing plate simultaneously for static weighing.
＊ It can be customized according to the specific requirements of the customers.
＊ Storage function: It can store 10,000 sets of test data.
＊ This instrument can be optionally equipped with an alarm function that will trigger when the weight reaches the specified value, and at the same time, the alarm indicator light will illuminate.
＊ The instrument is equipped with a high-speed micro printer that can print out time, date, record number, ticket number, axle weight, axle group weight, total weight, as well as axle weight ratio.
